Seperator / Slug Catcher
Download PDF Catalogue

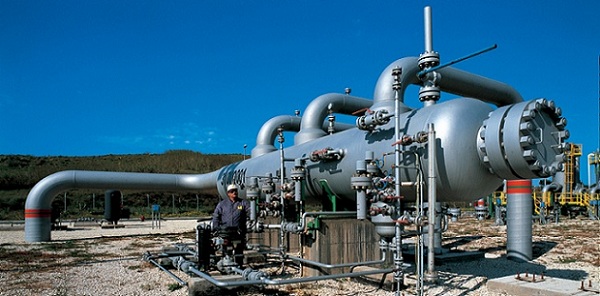

Systems harp type separator/slug catcher is a versatile device for catching slugs and separating liquid and solid particles from pipeline gas. It is built from high strength material and in its larger sizes can offer cost and delivery savings over vessel type slug catchers.
The units can be furnished completely engineered including the pig trap, separator/slug catcher, foundation and instrumentation The separator/slug catcher can be buried below ground or placed on piers above ground as conditions require. Controls can be integrated into the existing systems. The system can be split in two halves for redundant operation and/or sequential construction. Effective level controls are normally installed, including a vent line from a level column near the liquid manifold to the gas out manifold .

Anchor Flange1

Effective level controls are normally installed, including a vent line from a level column near the liquid manifold to the gas out manifold. With proper interconnections and the addition of interface controls, the sludge manifold can be used to effectively separate water from hydrocarbon liquids. If liquid particles smaller than 50 microns are to be removed from the gas stream, separator elements can be added to the dry gas manifold or downstream of the slug catcher.

Options

  • Hi-Lo pressure and level alarms
  • Electronic data acquisition system
  • Other sizes and specifications available upon request.
